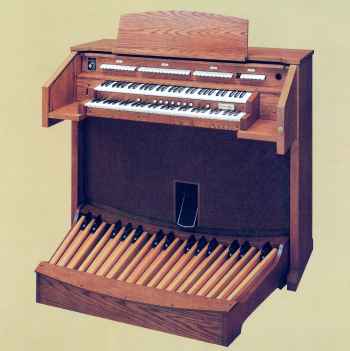

Allen model MDS-2

Model MDS-2
Specifications



GREAT SWELL PEDAL GENERALS

Diapason 8
(Principal)
Rohrflote 8
(Holzgedackt)
Flute Celeste 8
Octave 4
Spitzflote 4
(Harmonic Flute)
Super Octave 2
Mixture IV
(Cymbale III)
Krummhorn 8
Tremulant
Swell to Great
Midi on Great
Classical Voicing GT-PD

Gedackt 8
(Tuba Mirabilis)
Viola 8
Viola Celeste 8
Spitz Prinzipal 4
Koppelflote 4
(Open Flute)
Nasat 2-2/3
(Clarinet)
Blockflote 2
Terz 1-3/5
(Cor-Anglais)
Fourniture IV
Basson 16
Trompette 8
Tremulant
Midi on Swell

Bourdon 16
(Subbass)
Lieblich Gedackt 16
Octave 8
(Oktav)
Gedackt Flote 8
Choralbass 4
Mixture IV
Posaune 16
Trompete 8
Swell to Pedal
Great to Pedal
Midi on Pedal

Add stops
GT-PD Unenclosed
Bass Coupler
Melody Coupler
Reverb
Swell Solo Voices
Console Spkrs OFF
External Spkrs OFF
Memory B

OTHER

Second voicing on 10 stops (shown in parenthesis above).
Two 5 octave (61 note) manuals, 32 note concave radiating pedalboard (Pedalboard slightly shorter than AGO size).
Oak finish console with roll top lid.
Single swell pedal, with a switch to make the GREAT and PEDAL divisions sound as unenclosed.
MIDI compatable, with tab switches for each division.
Twelve key transposer.
Reverb.
Double memory capture system with 7 combinations in each memory.
AUDIO SYSTEM: Two channels totalling 200 W RMS, one 15" speaker, two 8" speakers and two tweeters; external speakers are optional.
DIMENSIONS: 1320mm wide x 1130mm high x 1220mm deep (including pedalboard).


All specifications and stop lists subject to change without notice or obligation.
